The Kukirin G2 Ultra is a powerful off-road scooter, but like any piece of tech, it has its moments.
If a code has popped up on your display and you’re not sure what to do, this guide walks you through every error code you’re likely to see and the steps to sort it out.
E-000: Motor Blockage
This one shows up when the scooter detects that the motor is being prevented from spinning. Before assuming the worst, check the wheels first.
Mud, debris, a tangled strap; anything physical could be the culprit. Clear whatever is in the way and restart the scooter. If the wheels spin freely and the code still appears, the motor likely has an internal problem and needs a professional to take a look.
E-001: Rear Motor Hall Sensor Fault
The Hall sensor tells the controller where the motor’s rotor is at any given moment. When it fails, the motor loses its sense of direction, so to speak.
The first thing to try is swapping the front and rear motor connectors. If the error follows the motor you moved, the motor itself needs replacing. If the fault stays with the original position, the controller is the issue.
E-002: Battery Overvoltage / Throttle Malfunction
This code has slightly different meanings depending on the firmware version of your scooter.
On some versions, E-002 flags a battery overvoltage condition; the battery voltage has gone higher than it should. The fix here is to simply leave the scooter switched off and unplugged for a couple of days to let the voltage settle.
If the error is still there after that, connect the scooter to KuKirin’s reset software to recalibrate the battery management system.
On other versions, E-002 points to a throttle (accelerator) problem. Unplug and replug the throttle connector. If the error persists, the throttle assembly needs to be replaced.
E-003: Controller Failure
The controller is the brain of the scooter, managing how power flows from the battery to the motors. E-003 has two possible explanations. If the code flashes briefly and then disappears, the controller is triggering its own overcurrent protection.
This can happen on steep climbs or during heavy acceleration. That’s not necessarily a hardware failure; just ease off and let the system reset.
If E-003 stays on and won’t clear, it usually means a short circuit inside the controller’s MOSFET (a key switching component).
At that point, start by replugging the main connector port. If that changes nothing, the controller will need to be replaced.
E-004: Brake Lever Fault
When E-004 appears, the scooter has detected a problem with the brake lever signal. Start simple: unplug the brake lever connector and plug it back in firmly.
A loose connection is often all it is. If the error returns after reseating the connector, the brake lever itself is faulty and needs swapping out.
E-005: Battery Undervoltage
The scooter’s controller has a low-voltage threshold of around 41V. Drop below it, and E-005 shows up. The straightforward fix is to charge the battery fully before riding again.
If the charger indicator light goes from red to green normally, the charger is fine. If it never turns green, try a different charger first.
If E-005 appears even when the battery shows a healthy charge level well above 41V, that’s a sign the battery itself may be damaged internally and will need replacing.
This error code is similar to the Kukirin G2 Max error E – 005.

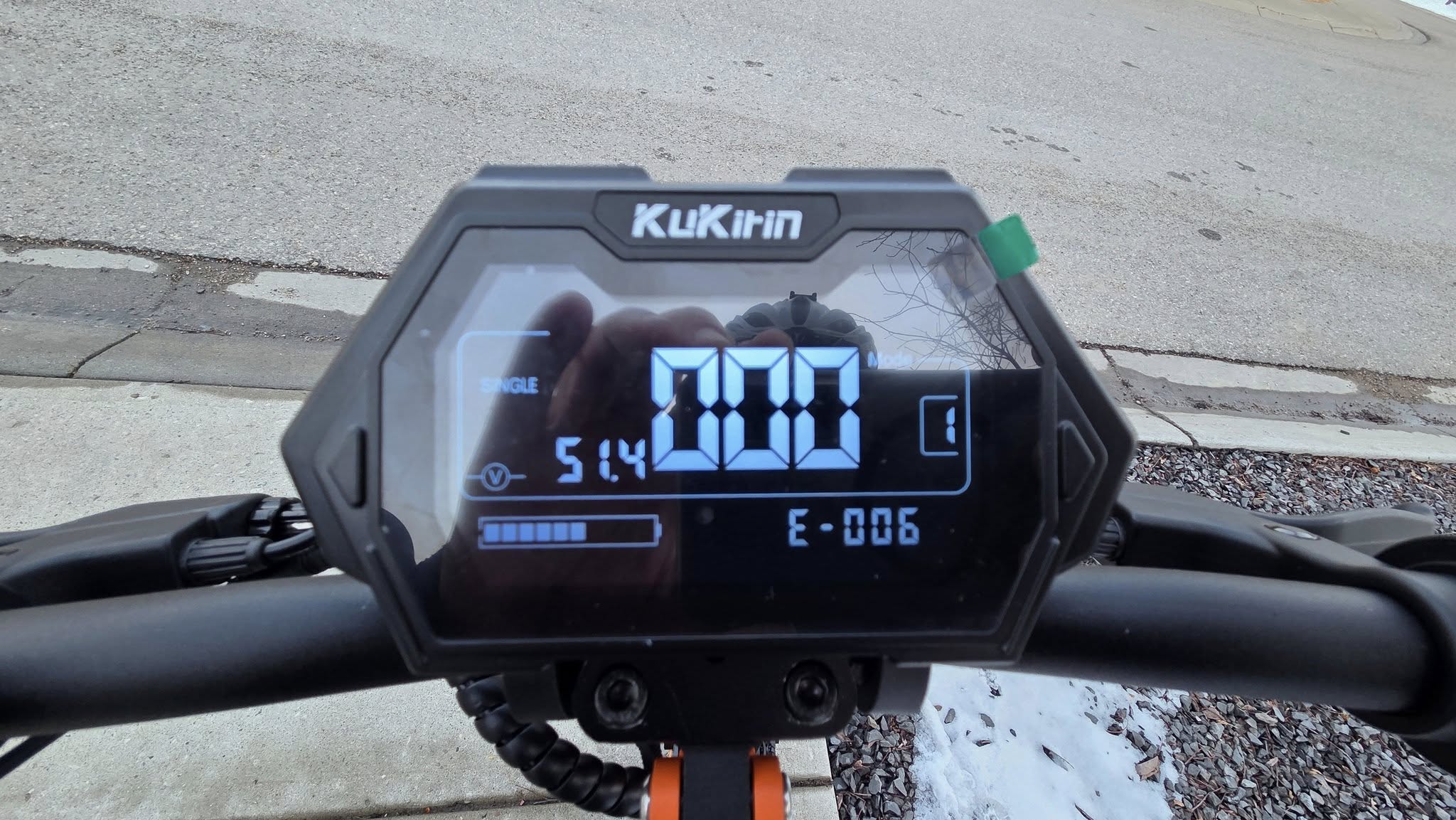

E-006: Display/Instrument Signal Reception Failure
This error means the display is not receiving communication from the controller properly. The first thing to do is disconnect and reconnect the main waterproof connector between the display and the controller.
While you’re at it, check the connector pins for any that look bent or corroded. If everything looks physically fine, try replacing the controller. If the error continues even after a new controller is in place, the display unit itself is the problem and needs to be replaced.
E-007: Instrument Signal Transmission Failure / Motor Hall Error
Again, this code can mean different things depending on the variant.
For some G2 Ultra units, E-007 is a display-side communication fault; the instrument is failing to send data properly. The recommended approach is to replace the display first. If the error sticks around after that, the controller needs to go next.
On other variants, E-007 points to a motor Hall sensor error. Unplug and replug the motor connector, then power the scooter back on. If the code reappears, the motor needs to be replaced.
E-008: Motor Over-Temperature Protection
The scooter is protecting its motor from heat damage. This tends to happen after an extended, hard ride; especially off-road.
Switch the scooter off and let it rest in a cool, shaded spot for 20 to 30 minutes. The error should clear on its own once the motor temperature drops. If it keeps coming back even on normal rides, the motor’s temperature sensor may be faulty.
E-009: Controller Over-Temperature Protection
Same concept as E-008, but this time it’s the controller that has overheated. Let the scooter cool down for a similar amount of time. If over-temperature errors are becoming a recurring issue, check that the controller housing has decent airflow and isn’t packed with dirt or mud blocking ventilation.
General Tips Before You Start Replacing Parts
A few things worth trying before ordering replacements:
Restart the scooter. Some codes clear themselves after a simple power cycle. Turn it off, wait 30 seconds, and try again.
Check all connectors. A huge number of error codes trace back to nothing more than a loose or slightly corroded connector. Unplug and firmly reseat any connector related to the flagged component.
Charge the battery. Low battery can cause a cascade of odd errors beyond just E-005. A full charge is always a sensible first step.
Use the reset software. For persistent battery-related errors, KuKirin’s reset tool (available from their support team) can recalibrate the battery management system without replacing any hardware.
If you’ve worked through the steps and the code won’t go away, reach out to KuKirin’s support team or take the scooter to a certified repair shop. Some faults do need hands-on diagnosis that goes beyond what a connector swap can fix.
